RFCI通信頻段N連接器螺紋隔離器20W

發布時間：2025-04-18 14:17:10 瀏覽：1891

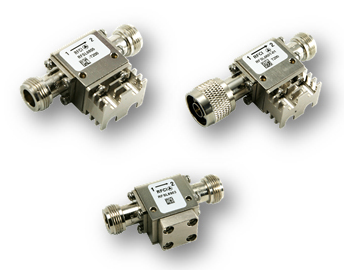

RFCI通信頻段N連接器螺紋隔離器20W

　　RF Circulator Isolator, Inc.推出的 N 連接器線程隔離器是一款專為通信頻段設計的射頻隔離器，具有以下特點：

　　應用場景：主要用于通信系統、無線基礎設施和雷達頻段。

　　連接器類型：標準型號配備 N 型母頭連接器，支持順時針(CW)旋轉，也可定制逆時針(CCW)旋轉。

　　功率等級：提供 20W、100W 和 200W 三種標準功率選項。

　　關鍵特性：

　　帶安裝孔，可方便固定。

　　插入損耗低，隔離度高。

　　寬溫度范圍和高功率處理能力。

　　結構堅固，符合 RoHS 標準，帶有磁屏蔽。

型號參數信息：

Part Number	FrequeNIy Range		Insertion Loss	Isolation	Return Loss	Forward Power	Rev Power	Operating Temperature	Package Outline
Part Number	FrequeNIy Range		(dB)	(dB)	(dB)	CW (W)	CW (W)	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT			(°C)	Figure
RFSL6124	205	230	0.50/0.70	20/18	20/18	2.0k/250	20	-20 to +85°C	NI-01
RFSL6125	220	280	0.50/0.70	19/17	19/17	2.0k/250	20	-20 to +85°C	NI-01
RFSL6126	270	335	0.40/0.60	20/18	20/18	2.0k/250	20	-20 to +85°C	NI-01
RFSL6101	270	330	0.40/0.50	20/18	20/18	2.0k/250	20	-20 to +85°C	NI-03
RFSL6127	325	400	0.40/0.50	21/18	21/18	2.0k/250	20	-20 to +85°C	NI-03
RFSL6102	328	406	0.40/0.50	20/18	20/18	2.0k/250	20	-20 to +85°C	NI-03
RFSL6128	350	410	0.40/0.50	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-03
RFSL6103	380	470	0.40/0.50	21/19	21/19	2.0k/250	20	-20 to +85°C	NI-03
RFSL6104	400	500	0.40/0.50	21/18	21/18	2.0k/250	20	-20 to +85°C	NI-03
RFSL6106	512	698	0.50/0.60	19/17	19/17	2.0k/250	20	-20 to +85°C	NI-03
RFSL6107	600	800	0.50/0.60	19/17	19/17	2.0k/250	20	-20 to +85°C	NI-03
RFSL6108	330	360	0.40/0.50	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6109	350	380	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6110	360	390	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6111	380	430	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6129	400	470	0.40/0.50	21/18	21/18	2.0k/250	20	-20 to +85°C	NI-05
RFSL6112	400	450	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6113	415	455	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6114	450	500	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-03
RFSL6130	470	570	0.40/0.50	20/18	20/18	2.0k/250	20	-20 to +85°C	NI-05
RFSL6115	470	520	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6116	520	576	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6131	570	670	0.40/0.50	20/18	20/18	2.0k/250	20	-20 to +85°C	NI-05
RFSL6117	576	638	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6118	600	750	0.40/0.50	21/19	21/19	2.0k/250	20	-20 to +85°C	NI-05
RFSL6119	700	1000	0.50/0.60	17/16.5	17/16.5	2.0k/250	20	-20 to +85°C	NI-05
RFSL6132	770	870	0.40/0.50	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6202	800	1000	0.40/0.50	19/18	19/18	2.0k/250	20	-20 to +85°C	NI-05
RFSL6203	800	960	0.40/0.50	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-05
RFSL6309	950	1250	0.60/0.70	17/16.5	17/16.5	2.0k/250	20	-20 to +85°C	NI-05
RFSL6310	960	1260	0.60/0.70	17/16.5	17/16.5	2.0k/250	20	-20 to +85°C	NI-05
RFSL6120	638	704	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-07
RFSL6121	698	806	0.30/0.40	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-07
RFSL6122	700	830	0.40/0.50	22/20	22/20	2.0k/250	20	-20 to +85°C	NI-07
RFSL6308	940	1200	0.40/0.50	20/18	20/18	2.0k/250	20	-20 to +85°C	NI-07
RFSL6301	1000	1400	0.50/0.60	19/17	19/17	2.0k/250	20	-20 to +85°C	NI-07
RFSL6406	1300	1700	0.50/0.60	19/17	19/17	2.0k/250	20	-20 to +85°C	NI-07
RFSL6123	700	850	0.40/0.50	22/20	22/20	2.0k/200	20	-40 to +85°C	NI-09
RFSL6201	790	960	0.40/0.50	22/20	22/20	2.0k/200	20	-40 to +85°C	NI-09
RFSL6302	850	1030	0.40/0.50	22/20	22/20	2.0k/200	20	-40 to +85°C	NI-09
RFSL6303	900	1100	0.40/0.50	22/20	22/20	2.0k/250	20	-40 to +85°C	NI-09
RFSL6304	960	1215	0.40/0.50	22/20	22/20	2.0k/250	20	-40 to +85°C	NI-09
RFSL6305	1000	1220	0.40/0.50	22/20	22/20	2.0k/200	20	-40 to +85°C	NI-09
RFSL6306	1100	1300	0.40/0.50	22/20	22/20	2.0k/200	20	-40 to +85°C	NI-09
RFSL6307	1200	1450	0.40/0.50	22/20	22/20	2.0k/200	20	-40 to +85°C	NI-09
RFSL6405	1300	1700	0.50/0.60	19/17	19/17	2.0k/200	20	-40 to +85°C	NI-09
RFSL6401	1350	1850	0.50/0.60	18/17	18/17	2.0k/200	20	-40 to +85°C	NI-09
RFSL6402	1400	1700	0.40/0.50	21/19	21/19	2.0k/200	20	-40 to +85°C	NI-09
RFSL6407	1600	2000	0.40/0.50	20/18	20/18	2.0k/200	20	-40 to +85°C	NI-09
RFSL6403	1400	1600	0.30/0.40	23/20	23/20	2.0k/200	20	-40 to +85°C	NI-11
RFSL6404	1500	1800	0.30/0.40	23/20	23/20	2.0k/200	20	-40 to +85°C	NI-11
RFSL6502	1600	2000	0.40/0.50	20/18	20/18	2.0k/200	20	-40 to +85°C	NI-11
RFSL6601	1700	2100	0.30/0.40	23/20	23/20	2.0k/20	20	-40 to +85°C	NI-11
RFSL6603	1765	2250	0.40/0.50	21/19	21/19	2.0k/200	20	-40 to +85°C	NI-11
RFSL6501	1800	2200	0.40/0.50	21/19	21/19	2.0k/200	20	-40 to +85°C	NI-11
RFSL6604	1980	2520	0.40/0.50	21/19	21/19	2.0k/200	20	-40 to +85°C	NI-11
RFSL6702	2000	2400	0.35/0.50	22/19	22/19	2.0k/200	20	-40 to +85°C	NI-11
RFSL6701	2000	2300	0.30/0.40	23/20	23/20	2.0k/200	20	-40 to +85°C	NI-11
RFSL6801	2100	2600	0.30/0.40	23/20	23/20	2.0k/200	20	-40 to +85°C	NI-11
RFSL6802	2300	2700	0.30/0.40	23/20	23/20	2.0k/200	20	-40 to +85°C	NI-11
RFSL6811	2400	3000	0.30/0.40	23/20	23/20	2.0k/200	20	-40 to +85°C	NI-11
RFSL6803	2500	2900	0.30/0.40	23/20	23/20	2.0k/200	20	-40 to +85°C	NI-11
RFSL6810	2700	3300	0.40/0.50	21/19	21/19	2.0k/100	20	-40 to +85°C	NI-11
RFSL6804	2700	3100	0.30/0.40	23/20	23/20	2.0k/100	20	-40 to +85°C	NI-11
RFSL6805	2800	3300	0.30/0.40	23/20	23/20	2.0k/100	20	-40 to +85°C	NI-11
RFSL6806	2900	3500	0.30/0.40	23/20	23/20	2.0k/100	20	-40 to +85°C	NI-11
RFSL6812	3300	3800	0.40/0.50	21/19	21/19	2.0k/100	20	-40 to +85°C	NI-11
RFSL6807	3300	3800	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11
RFSL6808	3400	4200	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11
RFSL6809	3600	4300	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11
RFSL6901	3900	4700	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11
RFSL6902	4200	5200	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11
RFSL6903	5000	6000	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11
RFSL6904	5700	6800	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11
RFSL6905	6000	8000	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	NI-11

RFCI是一家專業生產射頻(RF)環行器和隔離器的公司，產品覆蓋了從50 MHz到20 GHz的頻率范圍，廣泛應用于通信和無線基礎設施。深圳市立維創展科技有限公司優勢代理銷售RFCI產品，歡迎咨詢了解。
